80. Fresh ginger soil cleaning machine

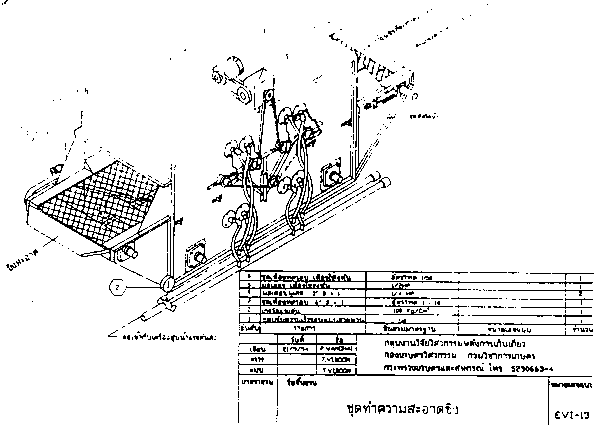

Fresh ginger soil cleaning machine

Type of machine

Fresh Ginger Soil Cleaning Machine

Commercial name

Ginger Cleaner

Local content by cost %


Power source

Electric 0.5 HP, 0.25 HP 220 V

Power type

Manual

Power requirement

2 persons

Specifications


Length (mm)

2,100

Width (mm)

1,200

Height (mm)

800

Weight (kg)

500

Capacity (Kg/h)

100

Efficiency (%)

90

Price


Local (Baht)

15,000

US$

417

Manufacturer

Agricultural Engineering Department


Department of Agriculture, Bangkaen


Tel. 5614484
